“Rock, Paper, Scissors, Lizard, Spock” is a variation of the children’s 3-way lock hand game called Rock Paper Scissors (or ‘Roshambo’). The ‘Lizard Spock’ version of the game has been made popular by the television show “Big Bang Theory.”
What is this all about?
This is actually quite an old post for me – I probably wrote it initially about8 years ago, however I couldn’t find it, and it turns out there were quite a few HTML statements in the original post I hadn’t cleaned up that prevented it from displaying correctly, so I am refreshing it with new graphics and updated content.
I decided to build a little application using Neo4J to 1) learn a bit of code and 2) show how to model RPSLS in a graph database.
Getting Started

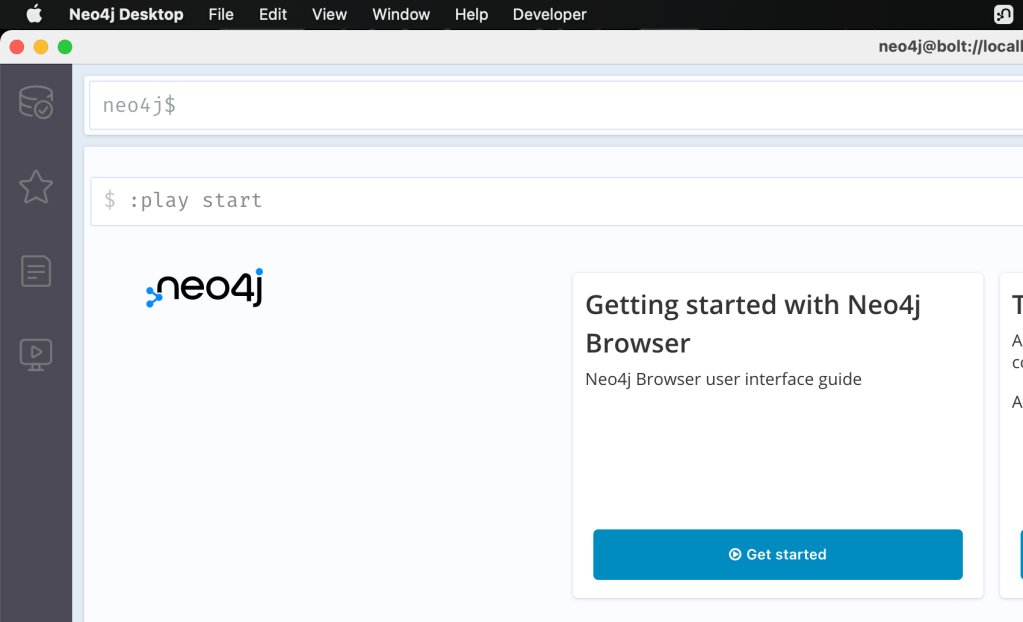

Download Neo4j Desktop from the following location, and install it on your desktop / laptop:
Once installed, create a new local database, and open to the integrated browser.

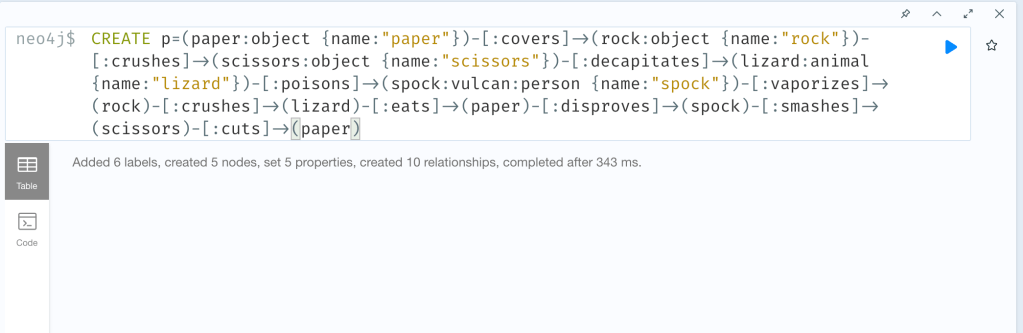

Use the statement below to populate the graph with the objects and relationships.
CREATE p=(paper:object {name:"paper"})-[:covers]->(rock:object {name:"rock"})-[:crushes]->(scissors:object {name:"scissors"})-[:decapitates]->(lizard:animal {name:"lizard"})-[:poisons]->(spock:vulcan:person {name:"spock"})-[:vaporizes]->(rock)-[:crushes]->(lizard)-[:eats]->(paper)-[:disproves]->(spock)-[:smashes]->(scissors)-[:cuts]->(paper)
If you need to…
Use the code below at any time to wipe the database and start over…
MATCH (n)
DETACH DELETE (n)Explore the Graph

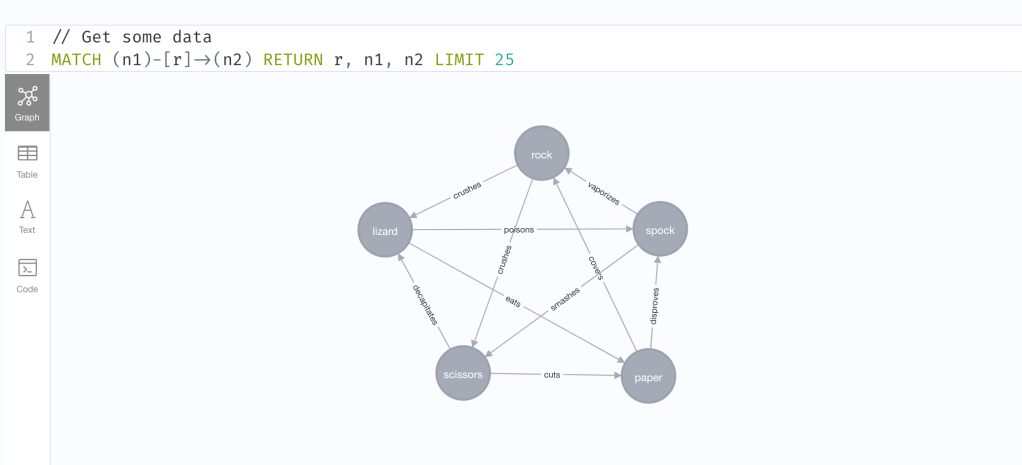

Let’s take a look at what we’ve got…
// Get some data
MATCH (n1)-[r]->(n2) RETURN r, n1, n2 LIMIT 25
What if….

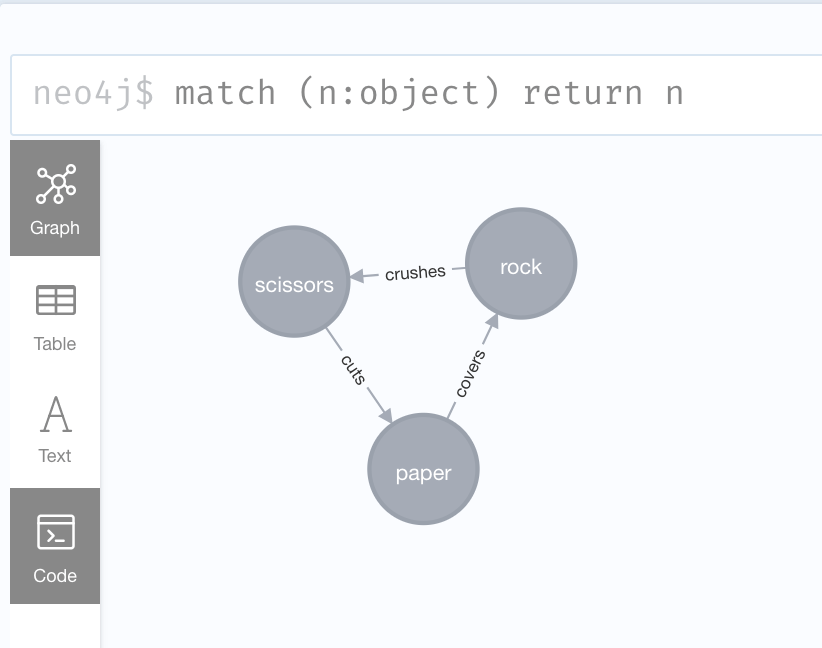

We only wanted to see objects of type ‘object?’
match (n:object) return n

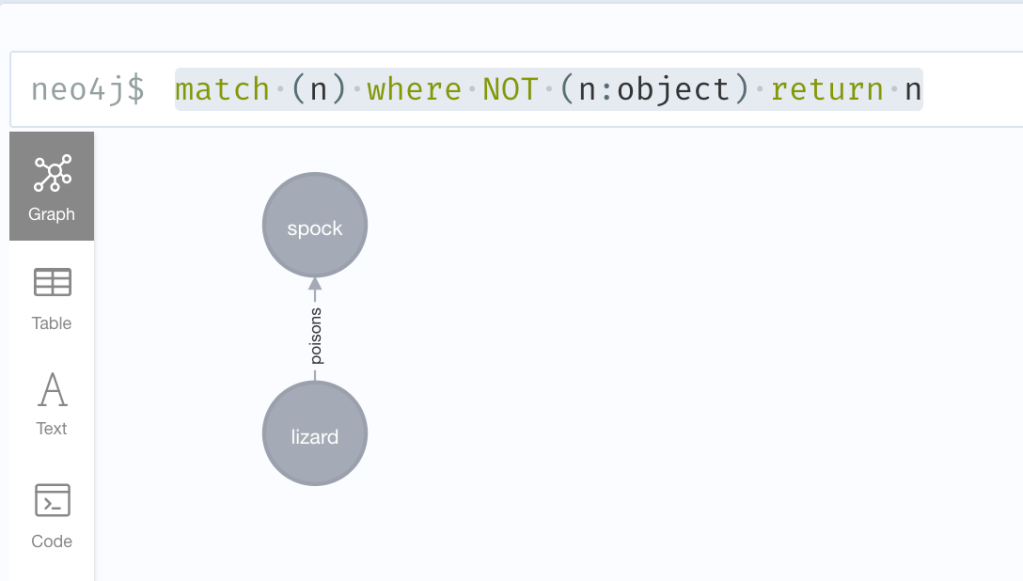

Find all non-objects
match (n) where NOT (n:object) return n

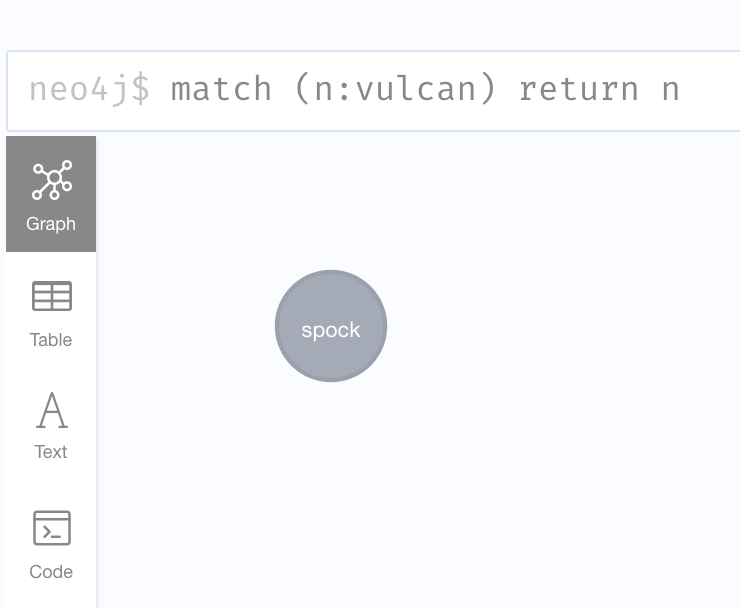

Find all vulcans
match (n:vulcan) return n

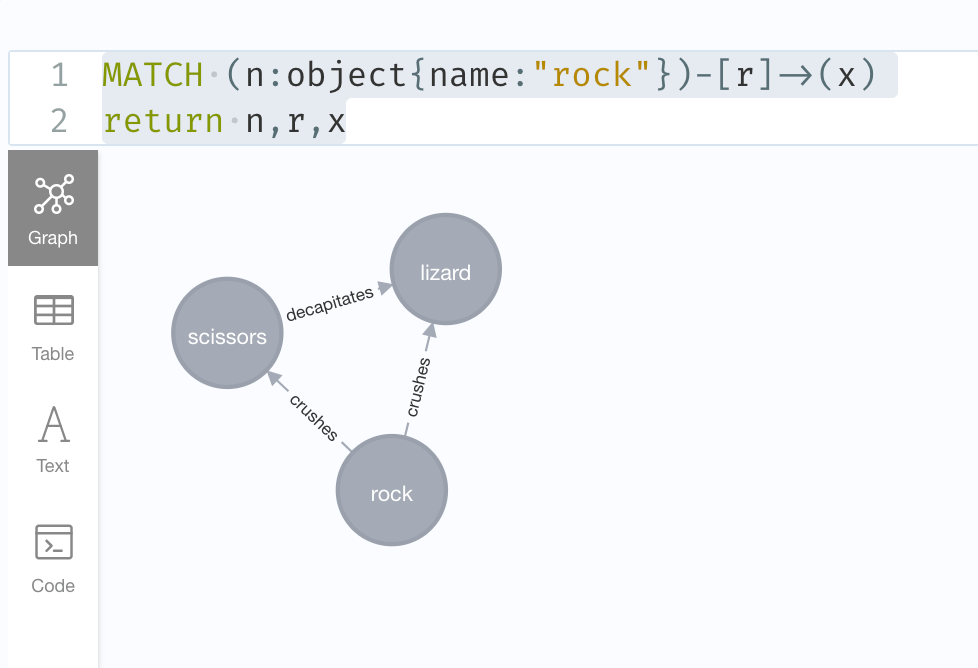

What are the actions for Rock?
MATCH (n:object{name:"rock"})-[r]->(x)
return n,r,x

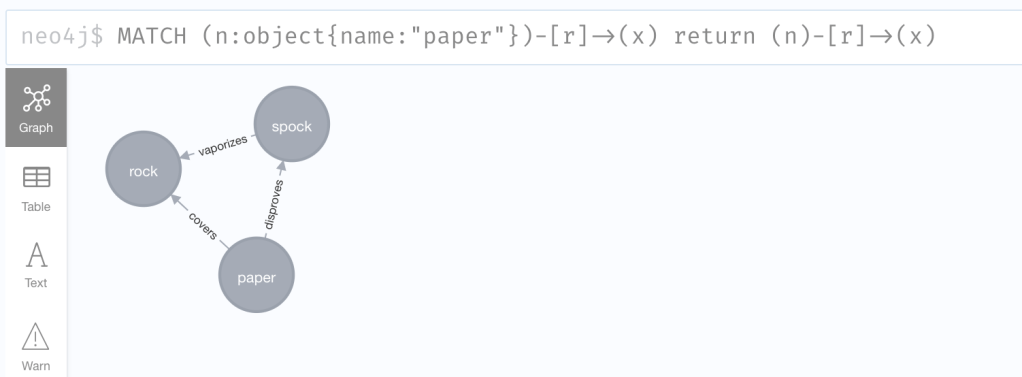

What are the actions for Paper?
MATCH (n:object{name:"paper"})-[rel]->x
return n,r,x

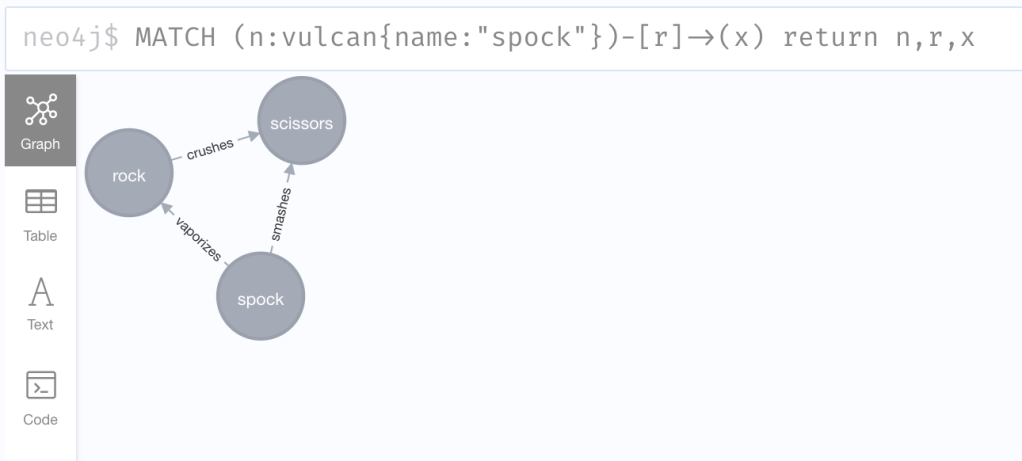

What are the actions for Spock?
MATCH (n:vulcan{name:"Spock"})-[r]->x
return n,r,x
